29000 Lt - 247 HL Rolec Cold Water Stainless Steel Tank
29000 Lt - 247 HL Rolec Cold Water Stainless Steel Tank
or
Call 832-521-8010
Description
29.000 Lt - 247 HL Rolec Cold Water Stainless Steel Tank
Isolation: Perlite - Mineral Wool.
Pressure Min/Max: Pressureless.
Temperature: 50C.
Max permissible density: 1100 kg/m3.
29.000 Lt - 247 HL Tanque Rolec De Agua Fría En Acero Inoxidable
Aislamiento: Perlita - Lana Mineral.
Presión Mín/Máx: Sin presión.
Temperatura: 50C.
Densidad máxima permitida: 1100 kg/m3.
Specifications
| Manufacturer | Rolec Prozess-und Brautechnik GmbH |
| Year | 2013 |
| Condition | Used |
| Stock Number | 875949 |

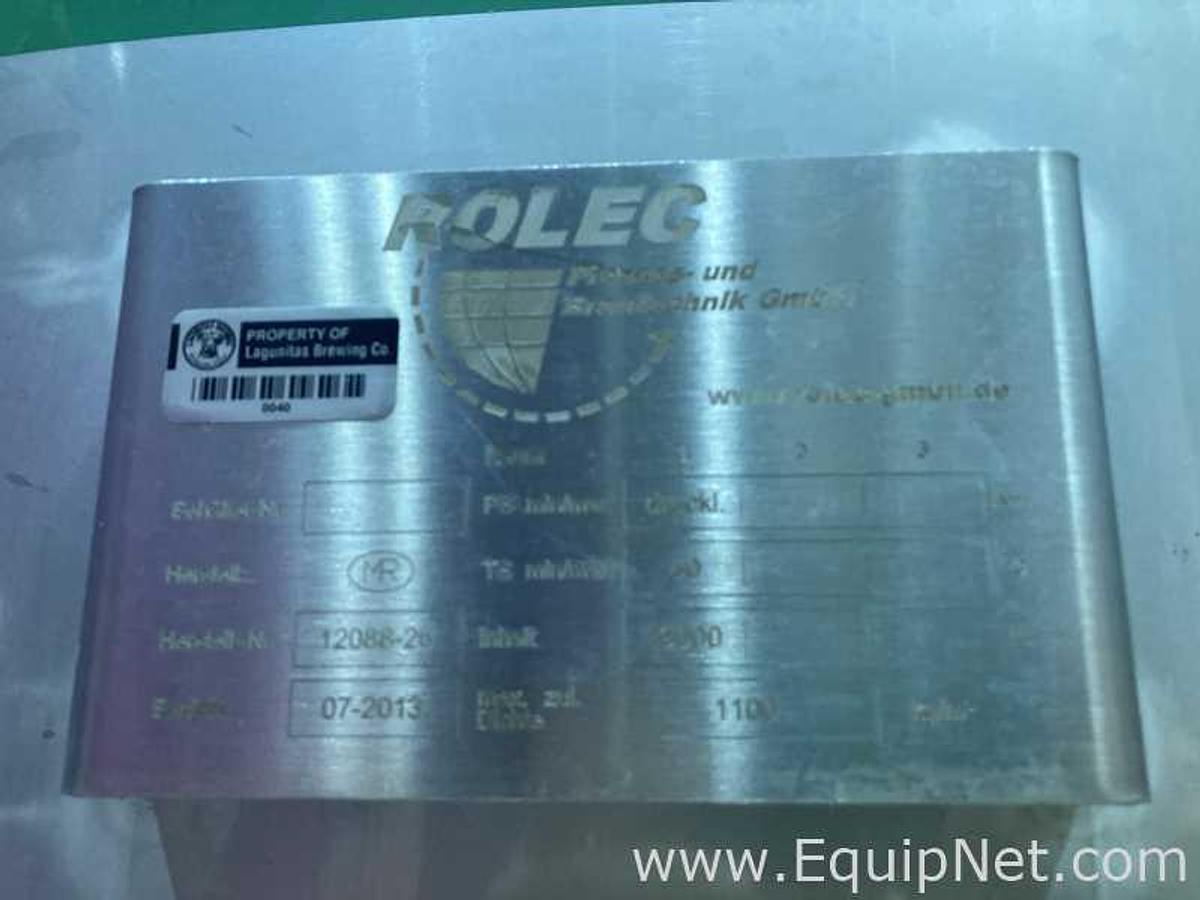

| Serial Number | 12088-26 |
| Capacity of Tank | 7663.54 gal |
| Tank Material of Construction | STAINLESS STEEL |
| Grade of Stainless Steel | 304 |
| Jacketed | NO |
| Type of Top Head | CONE |
| Type of Bottom Head | CONE |
| Vertical or Horizontal | VERTICAL |
| Agitation | NO |
| Installation Type | LEGS |
| Outside Diameter | 118.11 in |
| Inside Diameter | 110.24 in |
| Overall Height | 236.10 in |
| Straight Side | 172.05 in |
| Recommended Packaging Form | CUSTOM PALLET |
| Dimensions | Standard |
| Overall | 118 x 118 x 236 IN - 5600 LBS |
